Projects

CAD Steel Detailing Services

From Blue Prints to 3D Modeling

Structural Steel Detailing

JV Latona Drafting offers in-house structural steel detailing services to architects, engineers, and fabricators nationwide. They use the latest CAD technology to produce precise, cost-effective, and erector-friendly designs. Clients can submit sketches or images to receive fully-editable, multi-layered drawings in their preferred format.

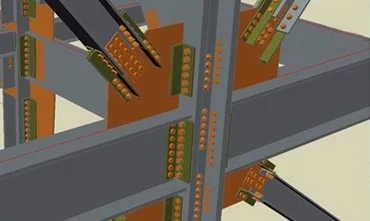

Steel Connections and Detailing

Steel Connection details are carefully coordinated between design documents, custom components in software, and AISC code requirements.  Whether your project utilizes connection sketches, standard details, or AISC standard connections we carefully detail the connections for adherence to the design.

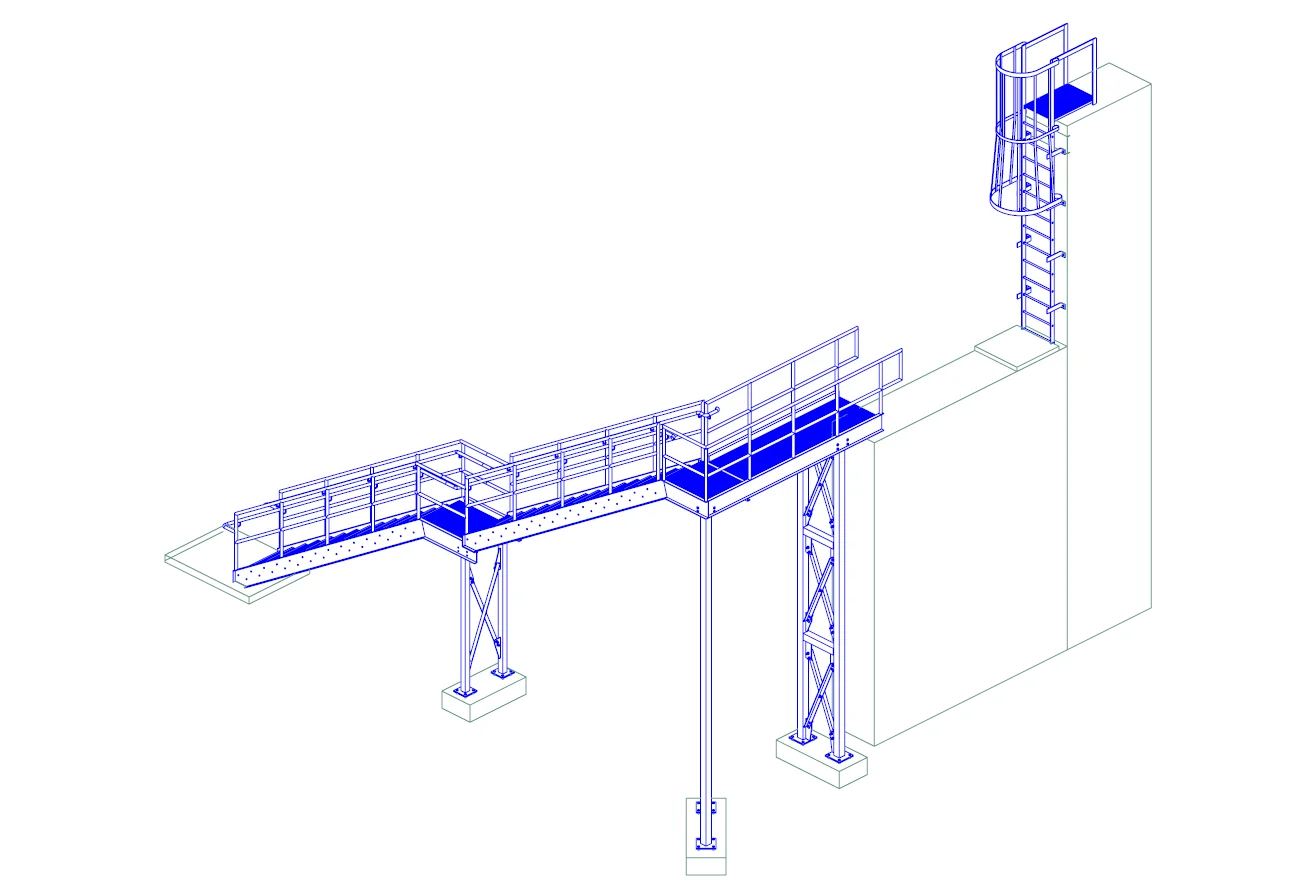

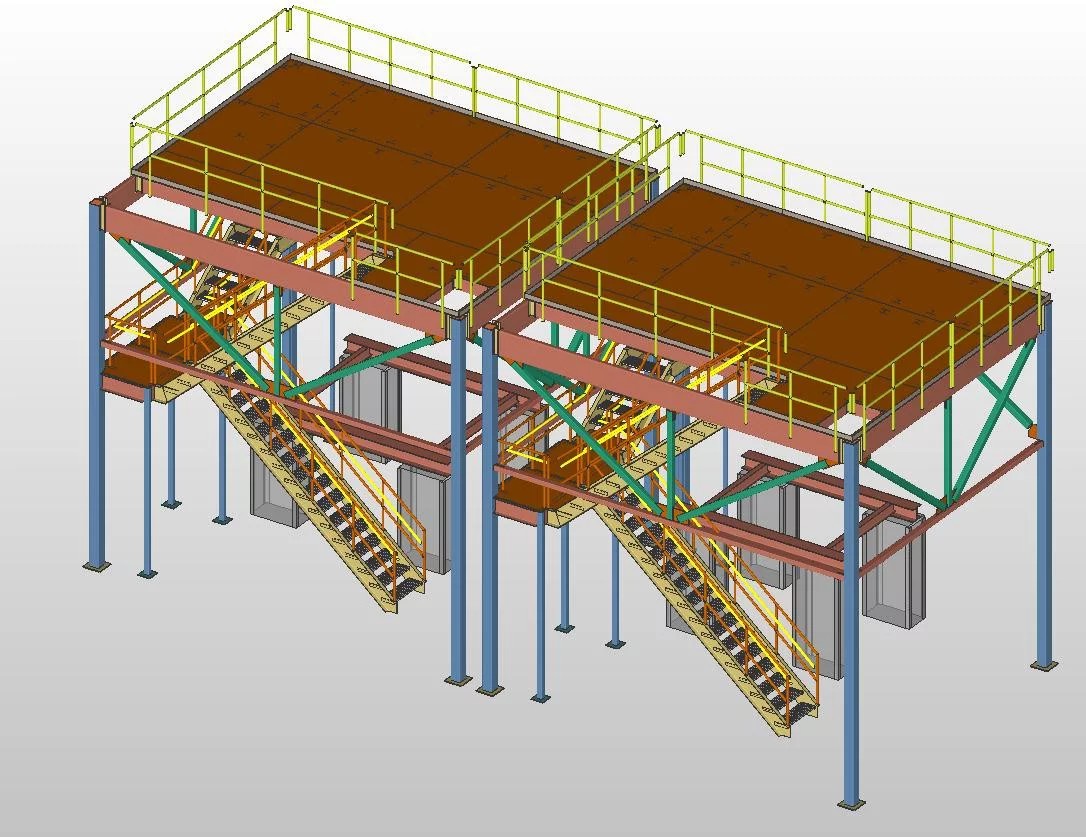

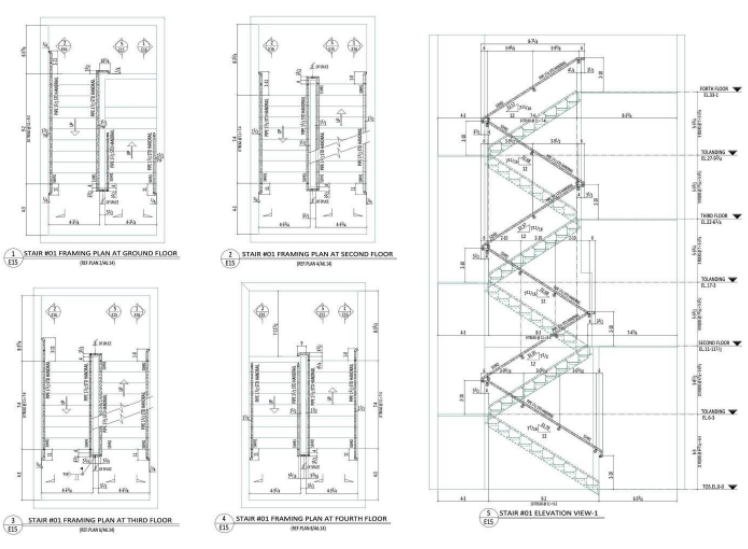

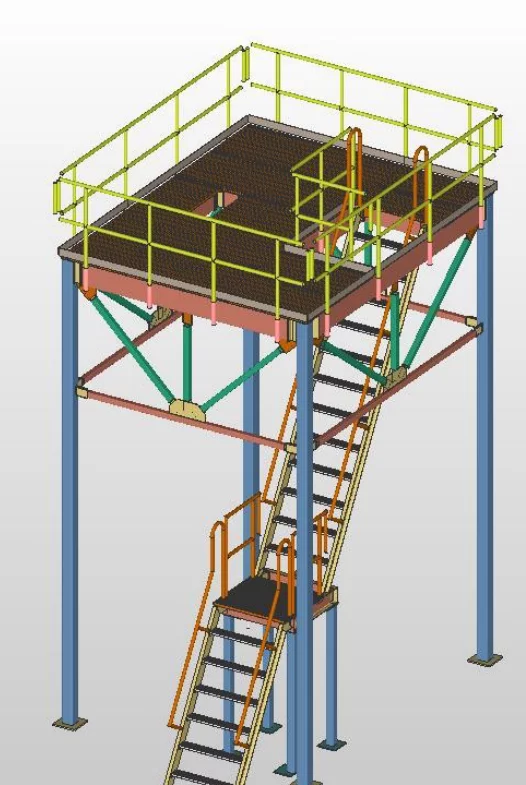

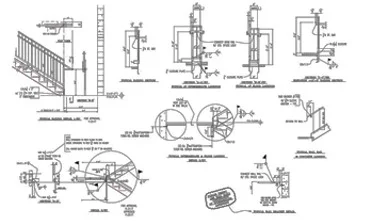

Detailing Stairs and Railings

Stair components include treads, stringers, supporting beams, and dog legs, with the nosing line ensuring proper alignment. Stairs can be detailed manually in 2D or automatically in 3D, with 3D offering faster, more accurate visualization. JV Latona Drafting specializes in stair detailing, ensuring precision and ease of erection.

2D MODELS

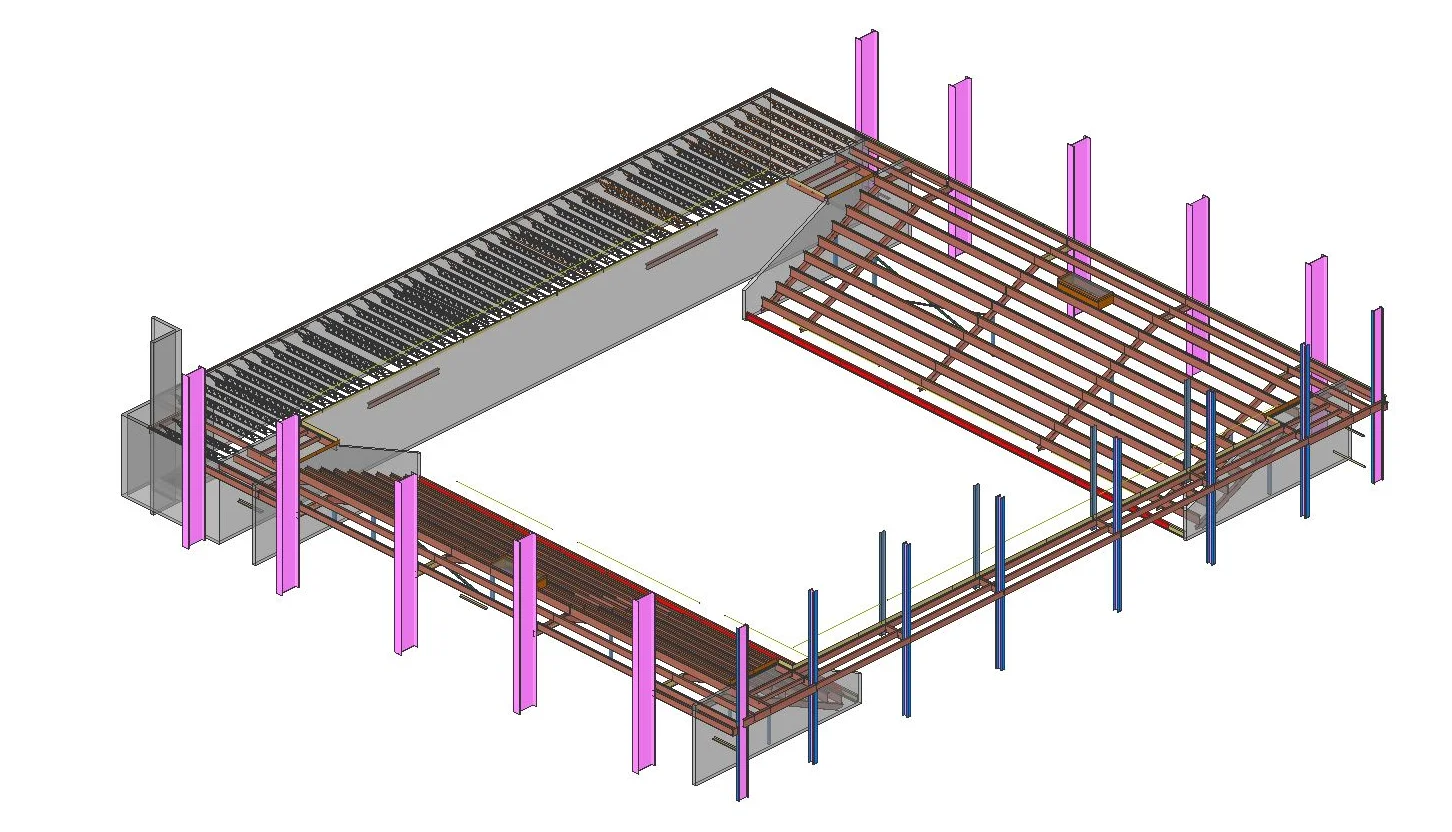

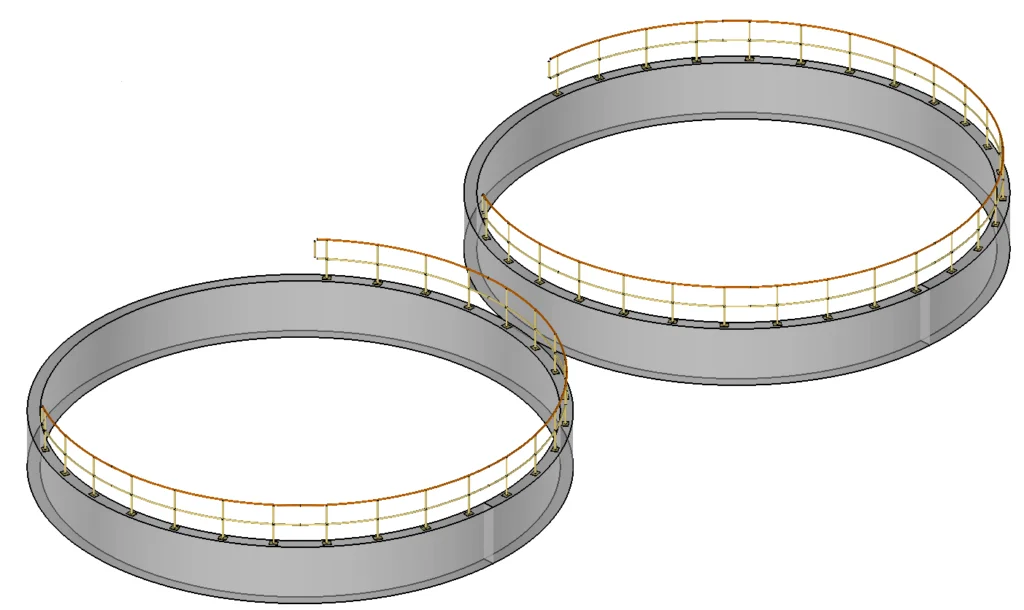

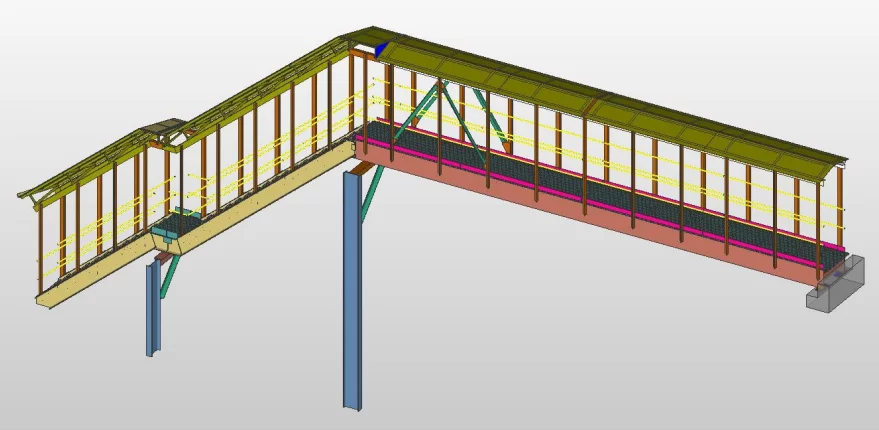

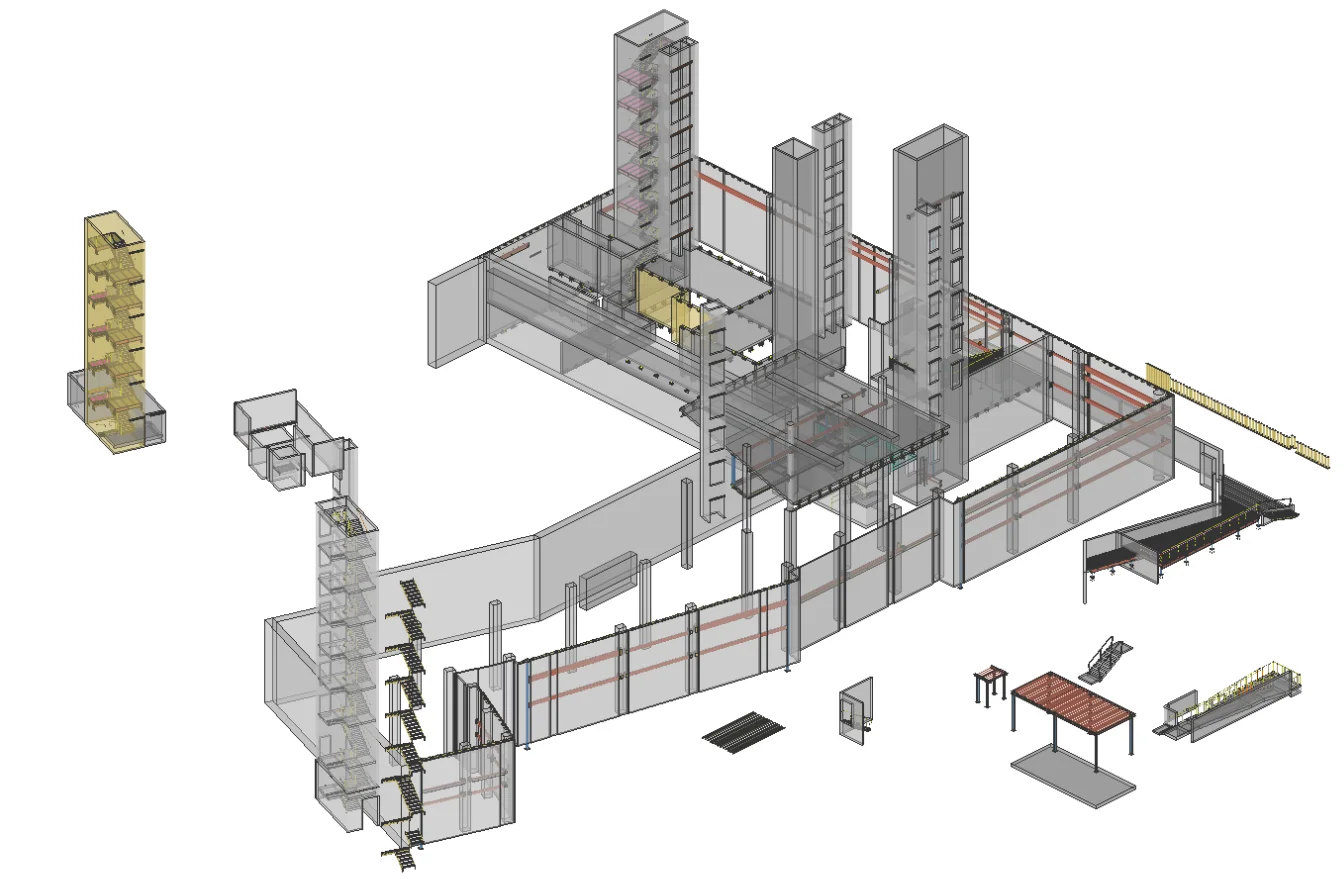

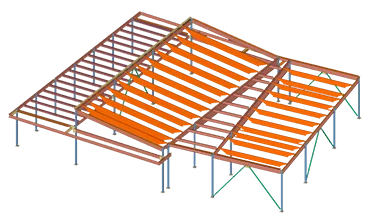

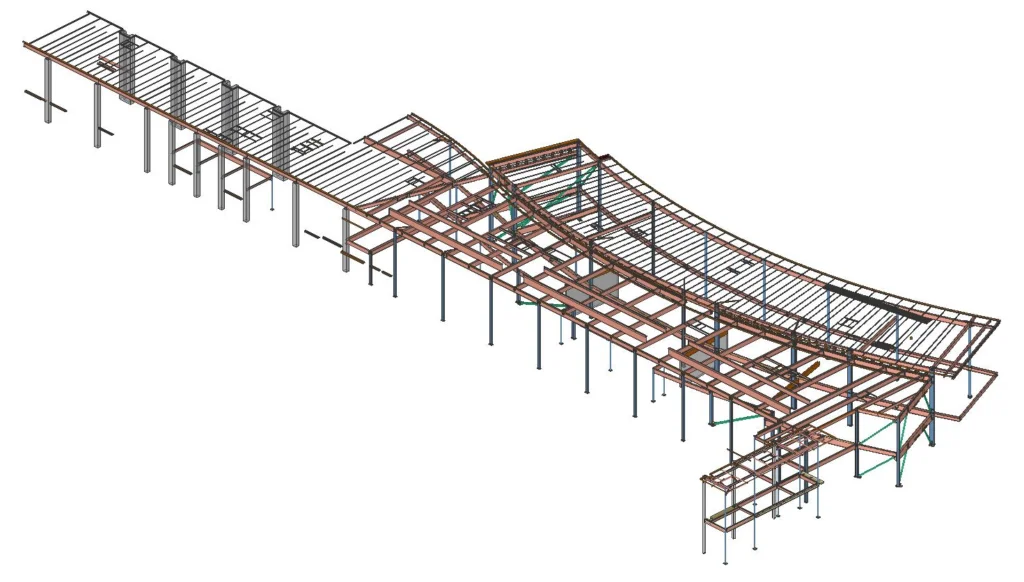

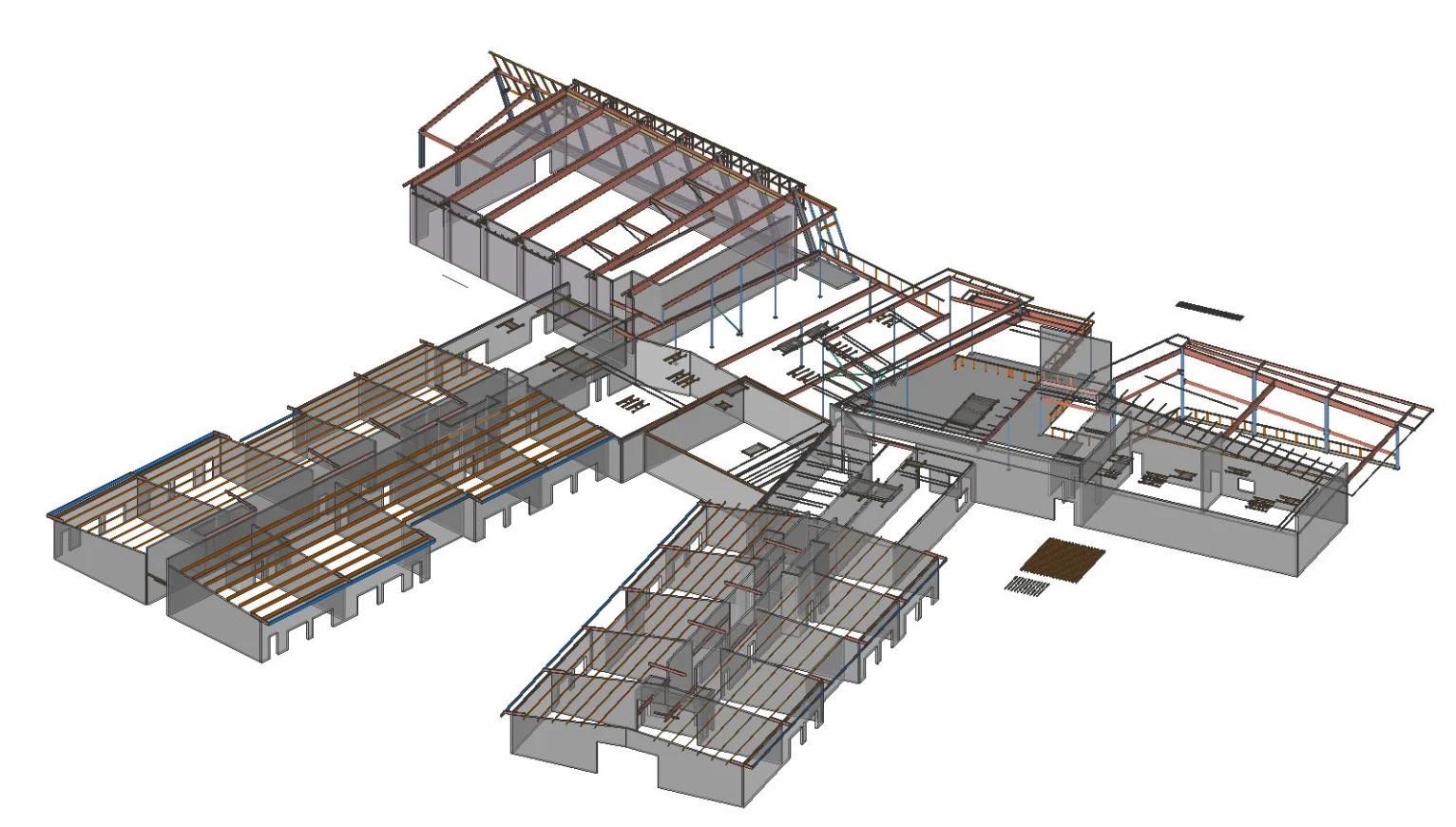

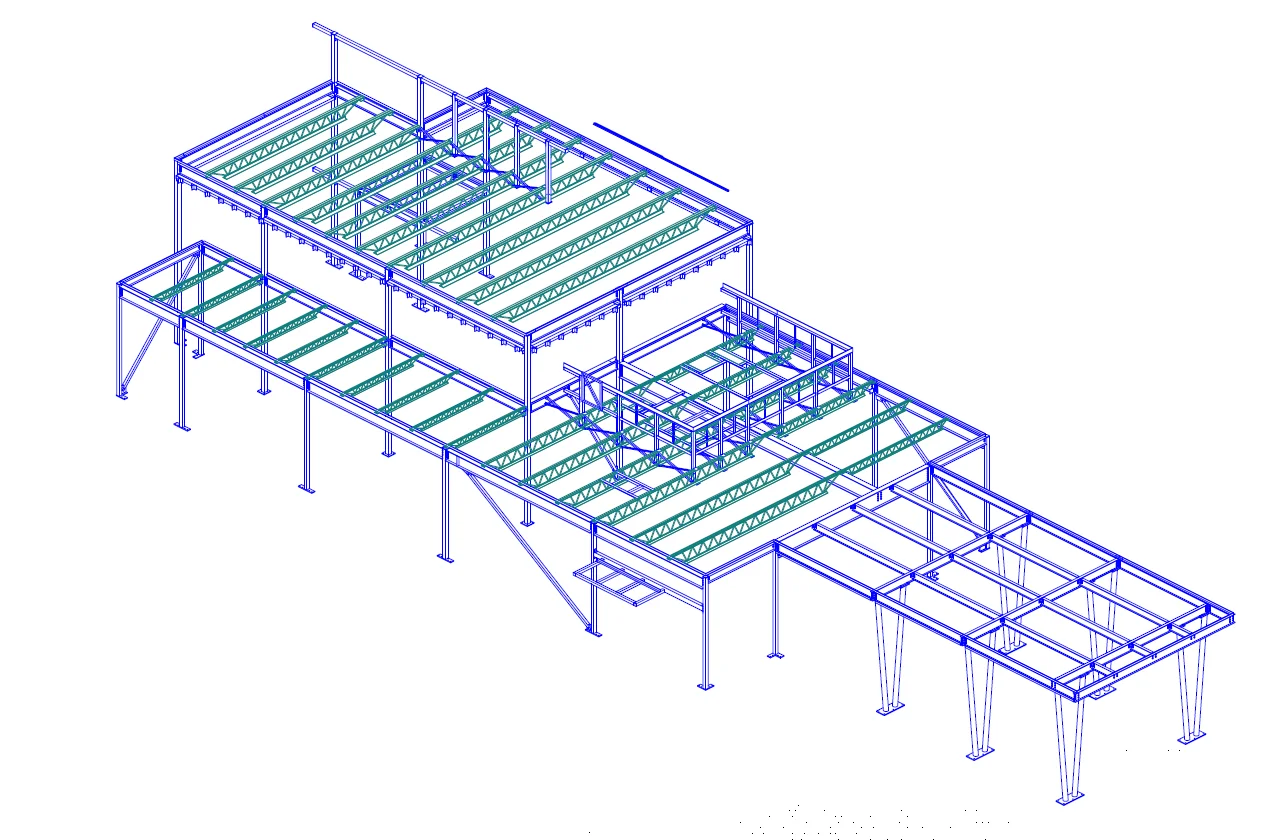

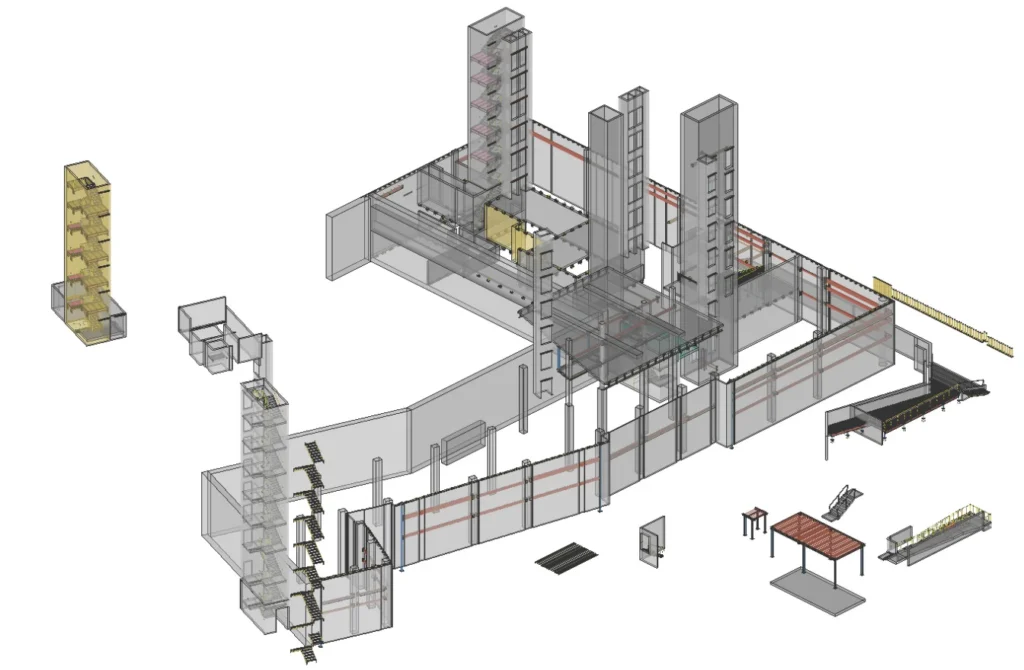

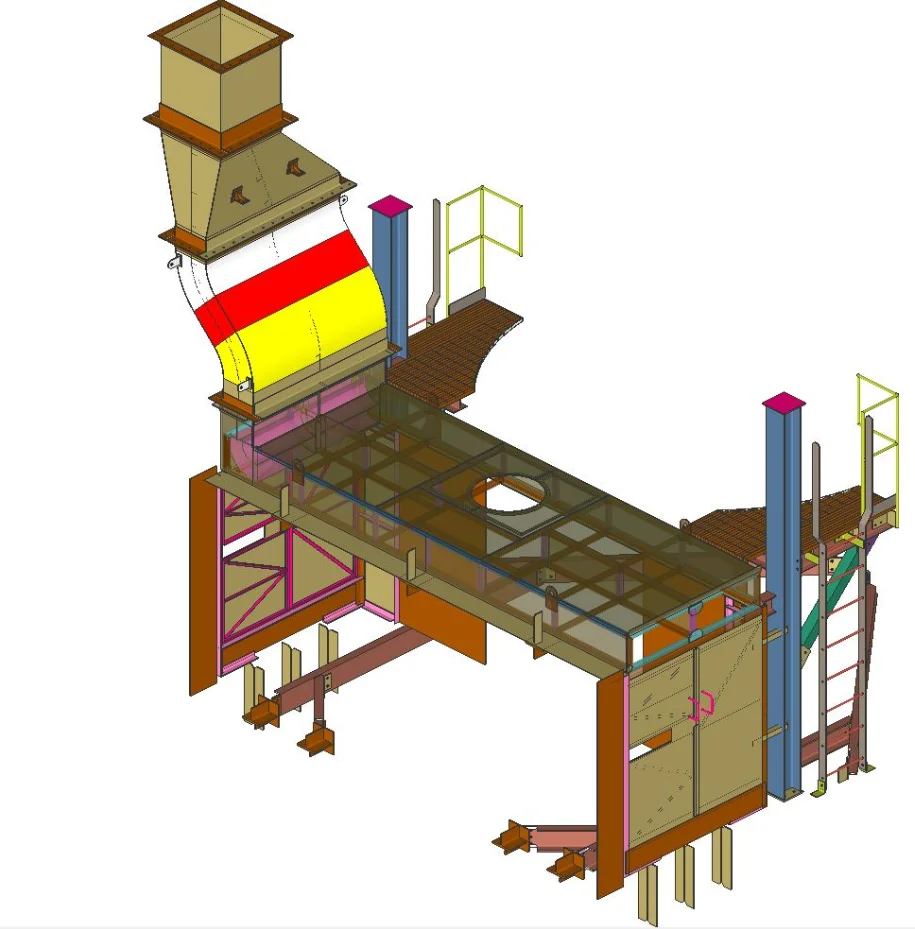

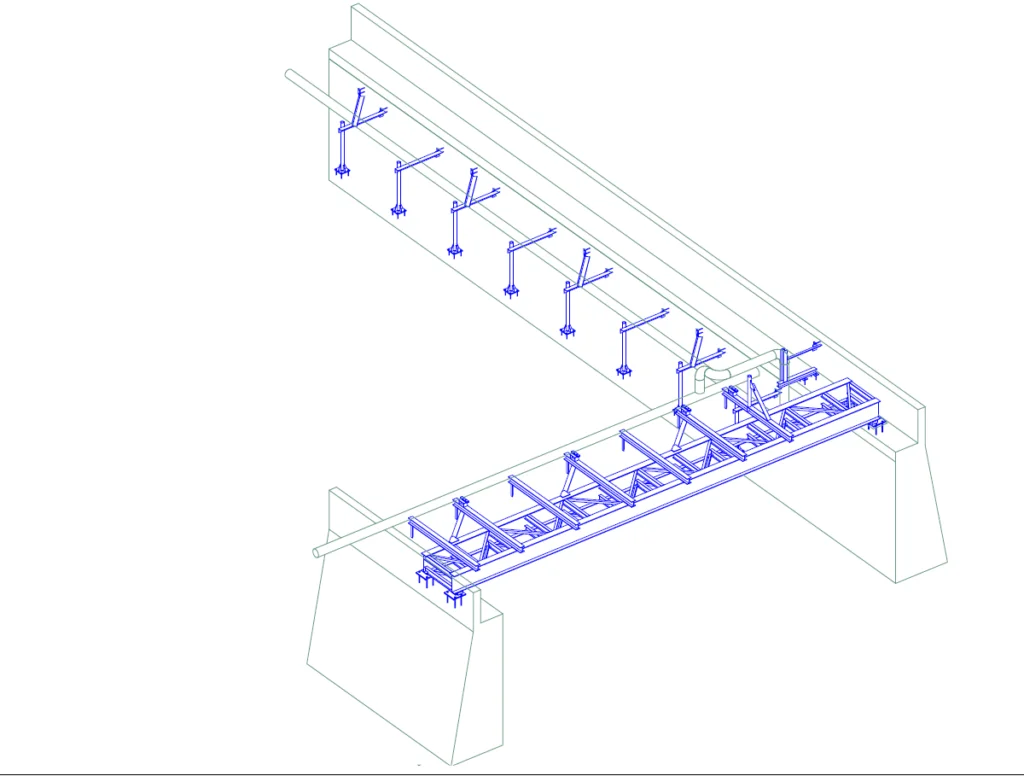

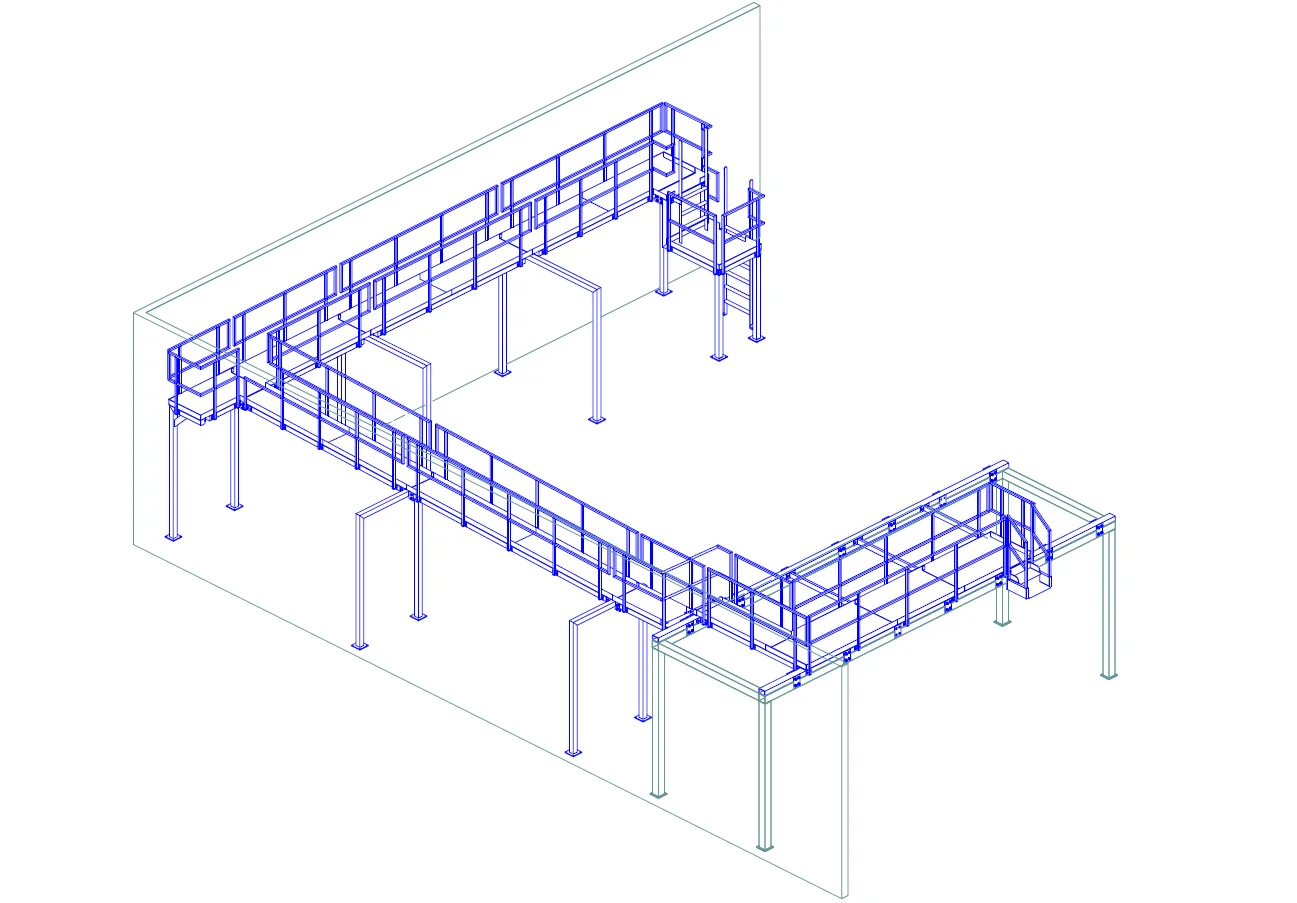

3D MODELS

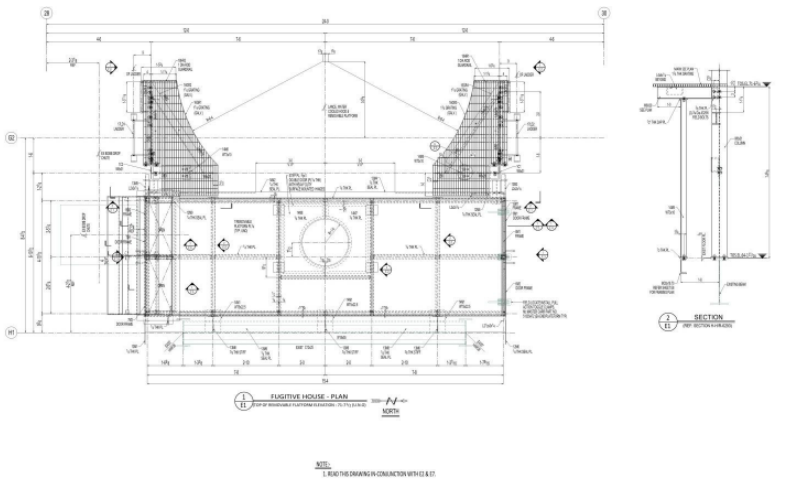

ERECTION DRAWING

1-29
1-32

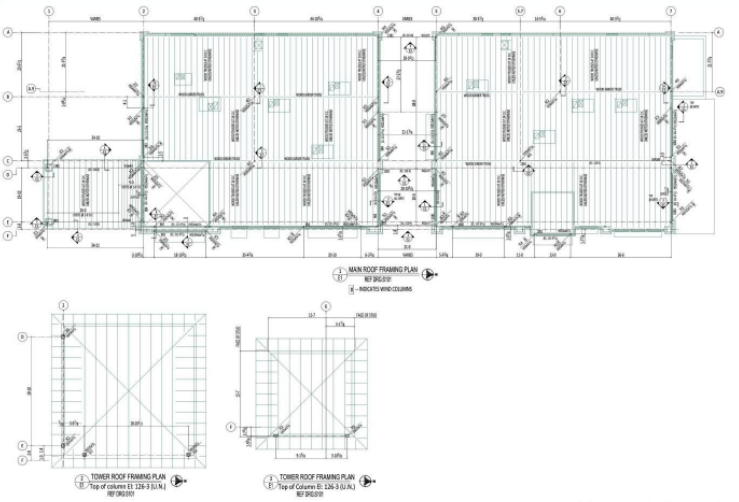

1-30

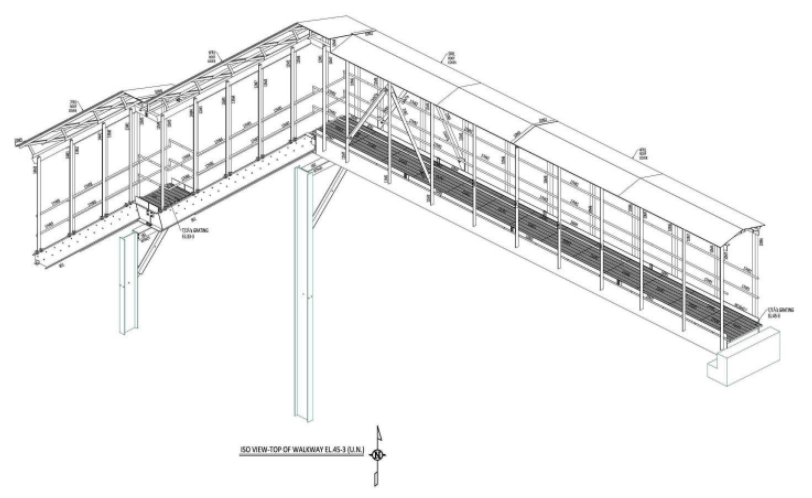

1-31

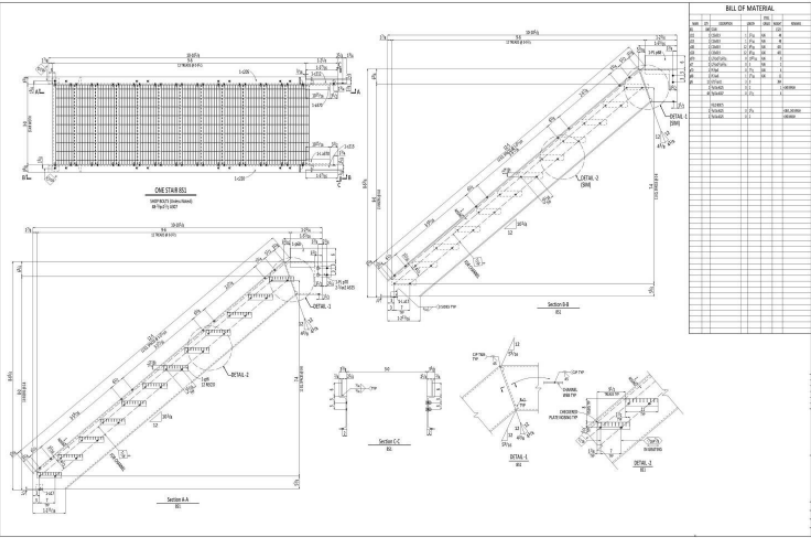

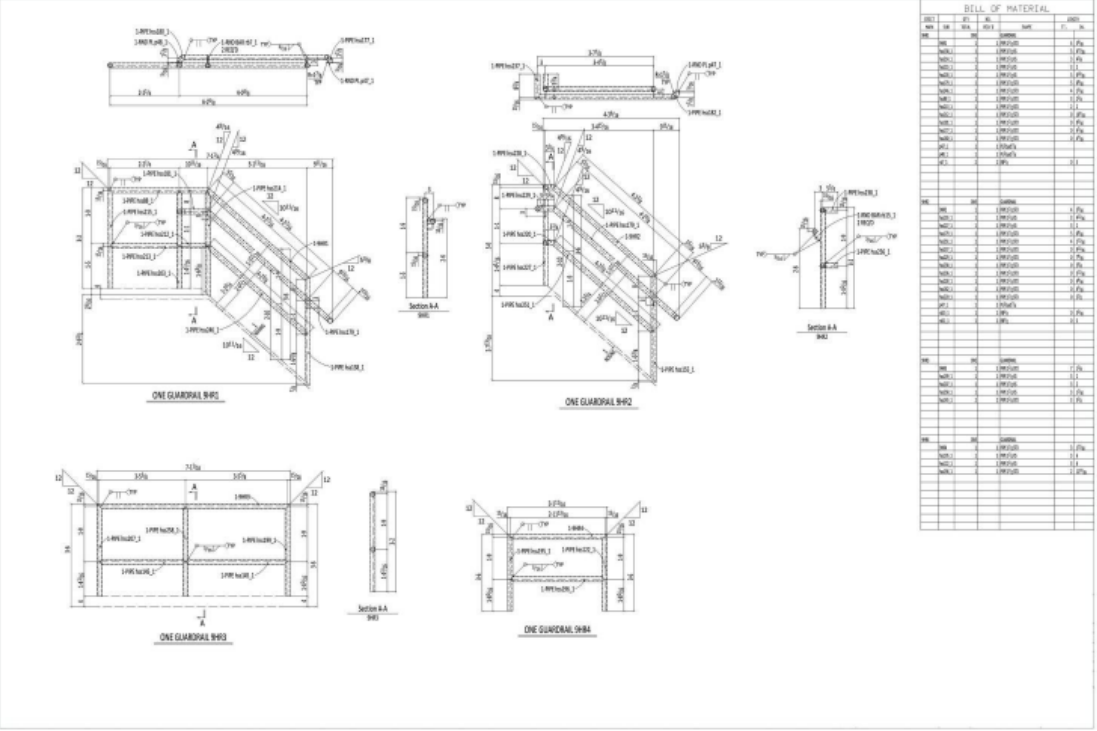

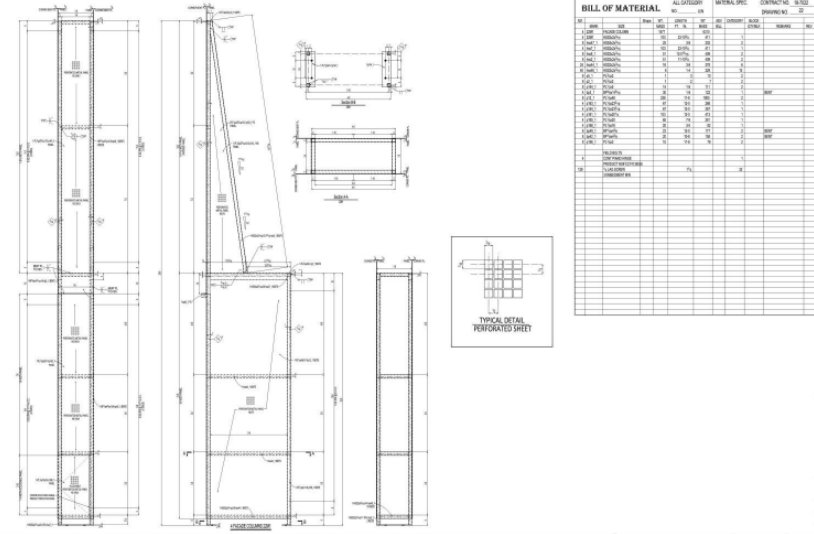

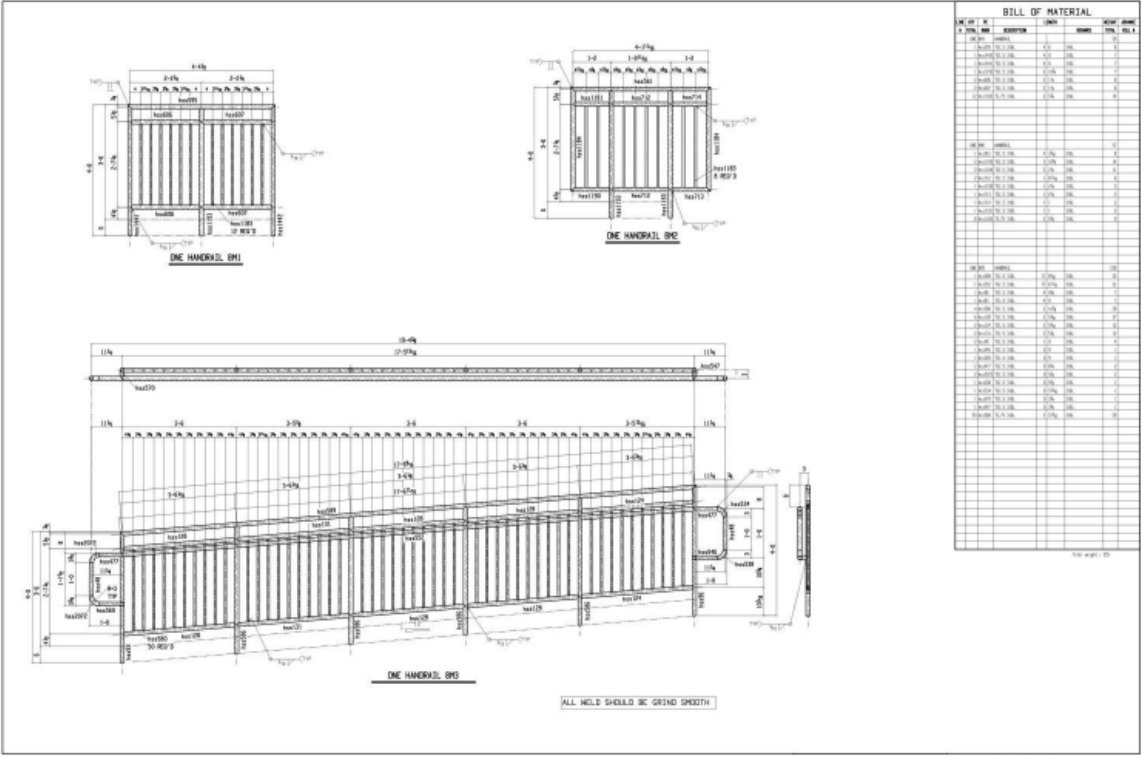

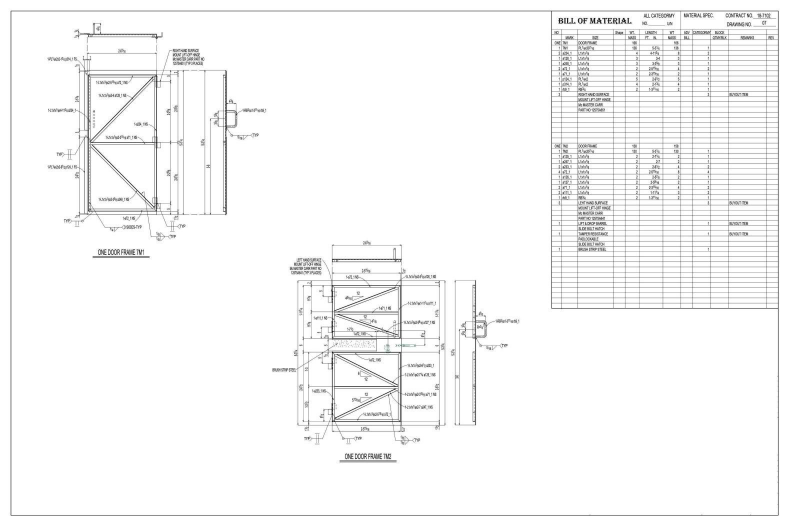

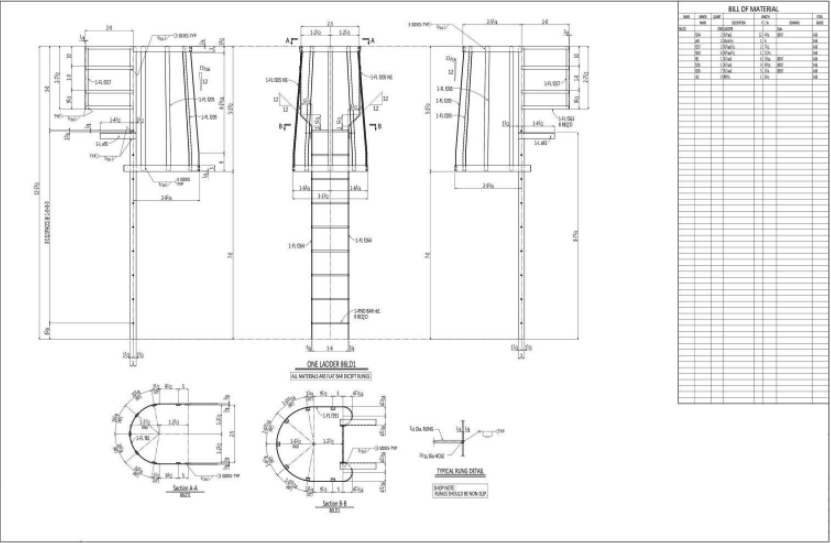

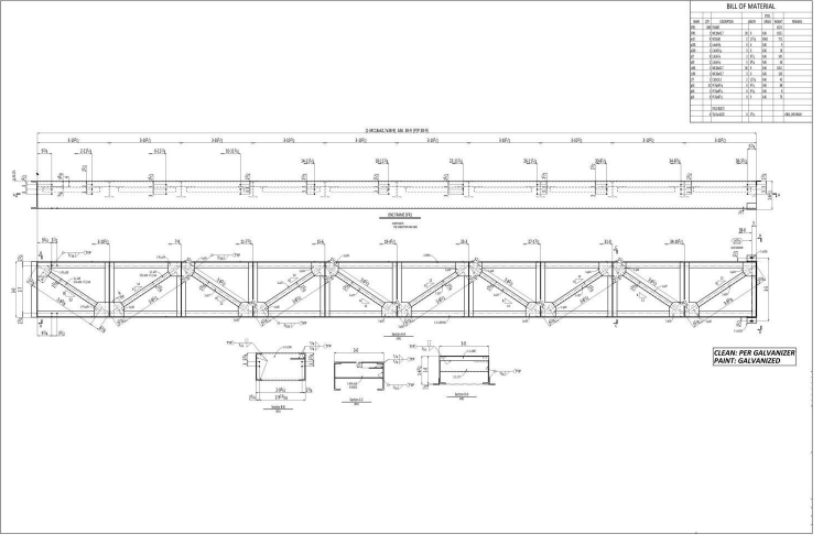

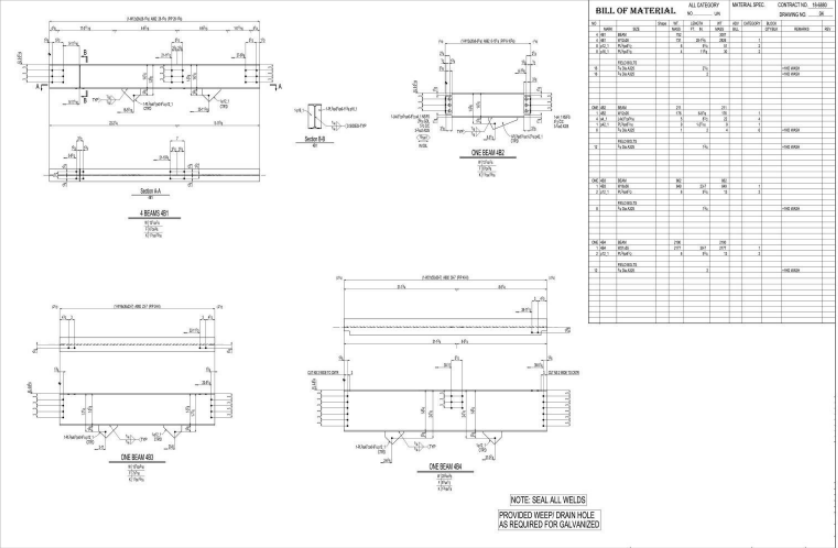

SHOP DRAWING

1-42

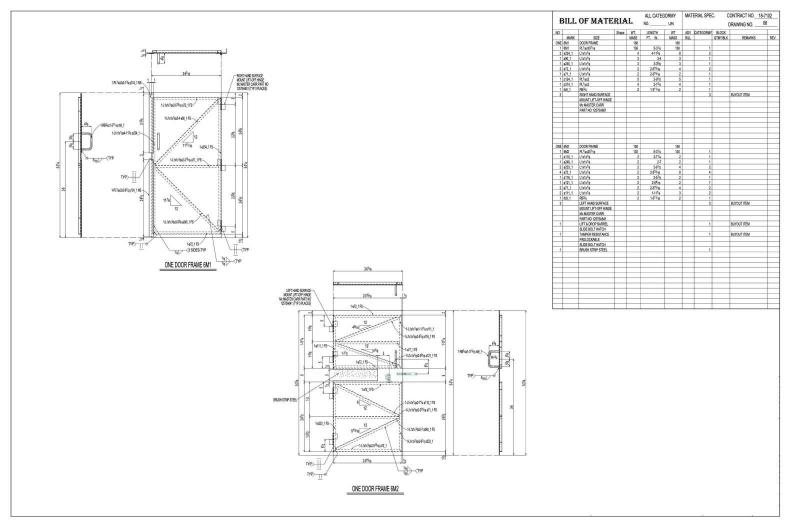

1-41
1-40
1-39
1-38
1-37
1-35

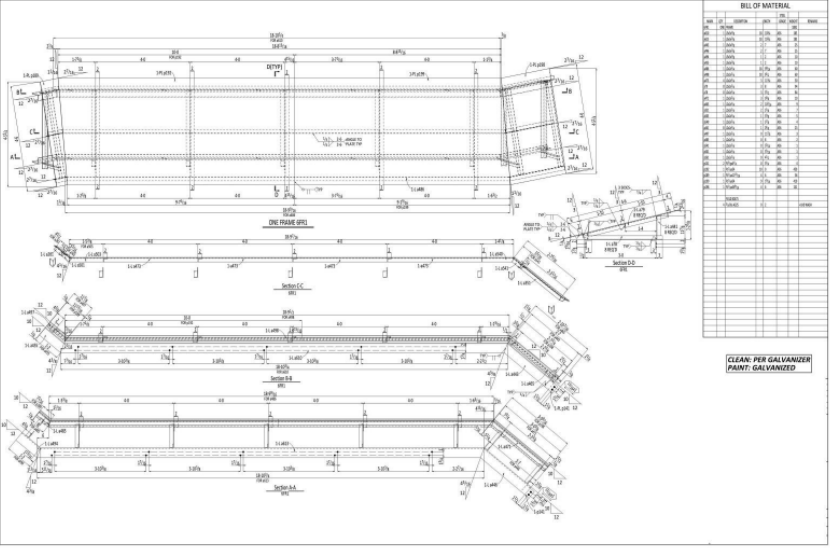

1-36
1-34
1-33
1-32
